Need Faster Discharge? Can a Tilting-Basket Square Deep Fryer Help?

Nothing beats perfectly fried food with a “golden, crispy” finish. For central kitchens, chain back-of-house teams, and food plants, consistency depends on matching equipment to controllable time-and-temperature parameters. Automatic square fryers with tilting-basket discharge are gaining attention because they save space, improve safety, and automate draining and unloading—helping boost throughput and reduce operator exposure to hot oil.

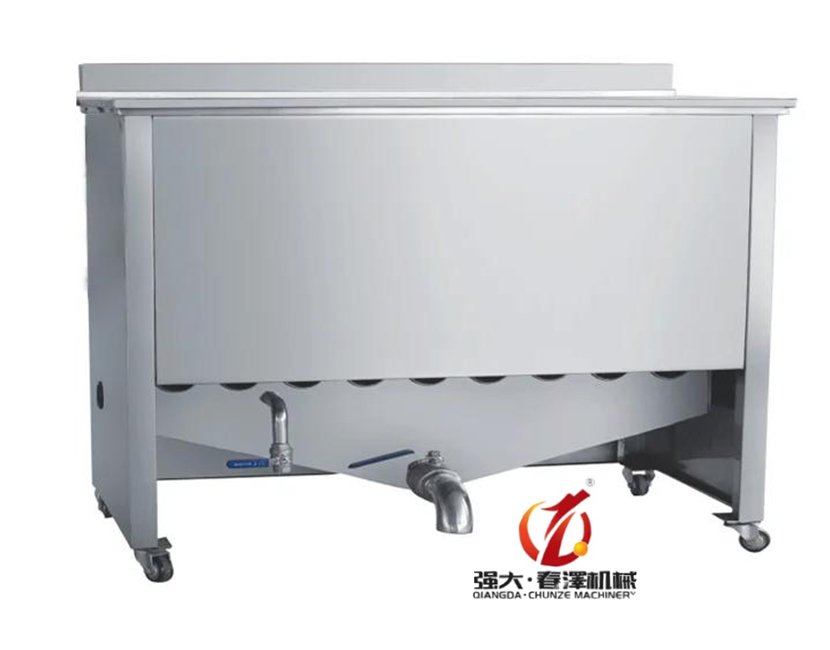

Automatic square deep fryer with tilting-basket discharge (overall equipment view).

Why choose an automatic square fryer with a tilting basket?

In many operations, frying has long relied on manual temperature control, manual basket handling, and manual draining and unloading—so efficiency and consistency depend heavily on operator experience. Upgrading to an electric deep fryer with stable controls makes outcomes more “parameter-driven” and easier to standardize across shifts.

A square tank design typically provides a larger usable heating and loading area than some round-kettle configurations. That extra surface area helps reduce crowding, supports more even heat exposure, and can increase single-batch loading—useful for fries, breaded products, and other high-volume menu or production items.

Square tank design: larger usable heating/loading area for higher single-batch capacity.

The real throughput accelerator is the tilting-basket mechanism: once a fry cycle ends, the basket can automatically lift and tilt to drain and discharge product quickly. This hands-free discharge shortens cycle time and reduces splashing and burn risk by keeping operators farther from hot oil. Adjustable thermostats and timers support fast changeovers and consistent, repeatable results across multiple SKUs.

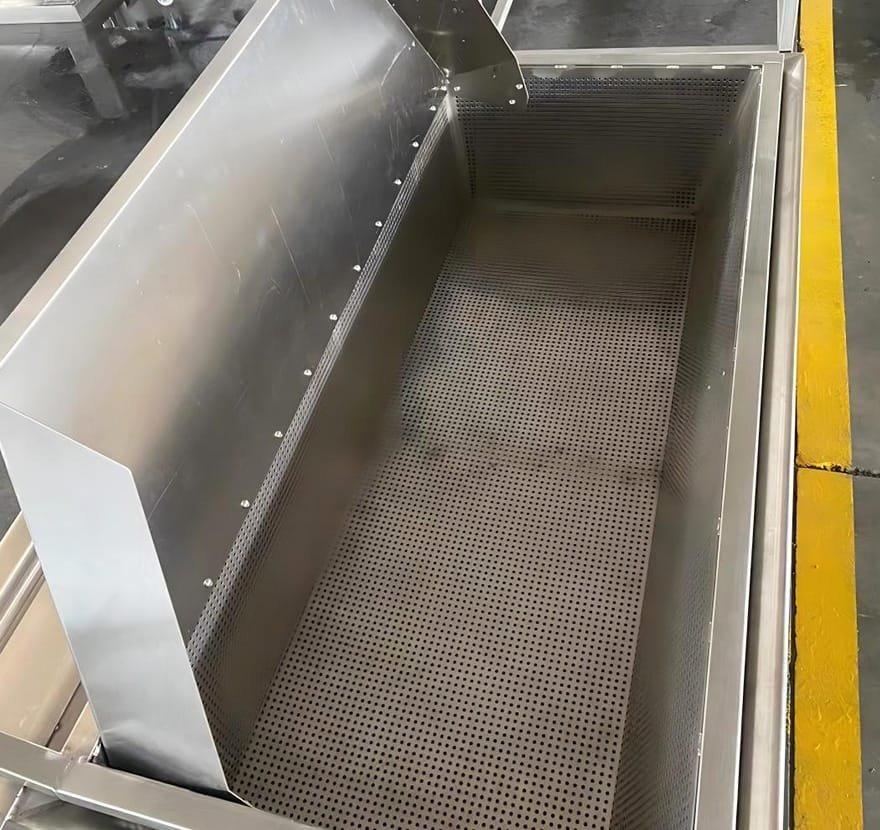

Tilting-basket discharge: automatic lift, drain, and unload to shorten cycle time and reduce hot-oil exposure.

The process science behind a crisp finish

Equipment upgrades are only the foundation. Understanding the mechanics of frying helps teams lock in texture and reduce rework.

Oil selection and temperature control: the core variables behind oil uptake and texture

Great frying starts with oil selection. When choosing frying oil, pay close attention to the smoke point to match high-temperature operating conditions. Oils such as peanut, canola/rapeseed, and sunflower typically have relatively high smoke points (often around 400°F / 204°C and above), meaning they are less likely to break down under heat. That supports cleaner flavor, steadier performance, and longer oil life.

Maintaining the right oil temperature (commonly 350–375°F / 177–191°C) is critical for achieving a crisp exterior and tender interior. If the oil is too cool, products tend to absorb oil rather than forming a quick crust. In practice, temperature monitoring is often the first step to solving “soft/soggy” fried products: when oil temperature is sufficiently high, internal moisture rapidly turns to steam and escapes outward, creating a barrier that reduces oil penetration and improves crispness.

Design and functions: configurations that improve line friendliness

When evaluating frying solutions, teams often compare air-frying equipment with oil-immersion systems. Air frying is closer to hot-air convection and can be suitable for low-oil requirements, while immersion frying still has clear advantages in flavor and rapid, uniform crust formation—making it better suited for products that require an authentic fried texture and high-output production.

To make immersion frying easier to manage in continuous operations, some square fryers can be configured with or integrated into oil filtration solutions. By draining and filtering cooled oil through valves and piping, fine crumbs can be removed, oil life extended, and overall oil consumption reduced—without adding excessive labor between batches.

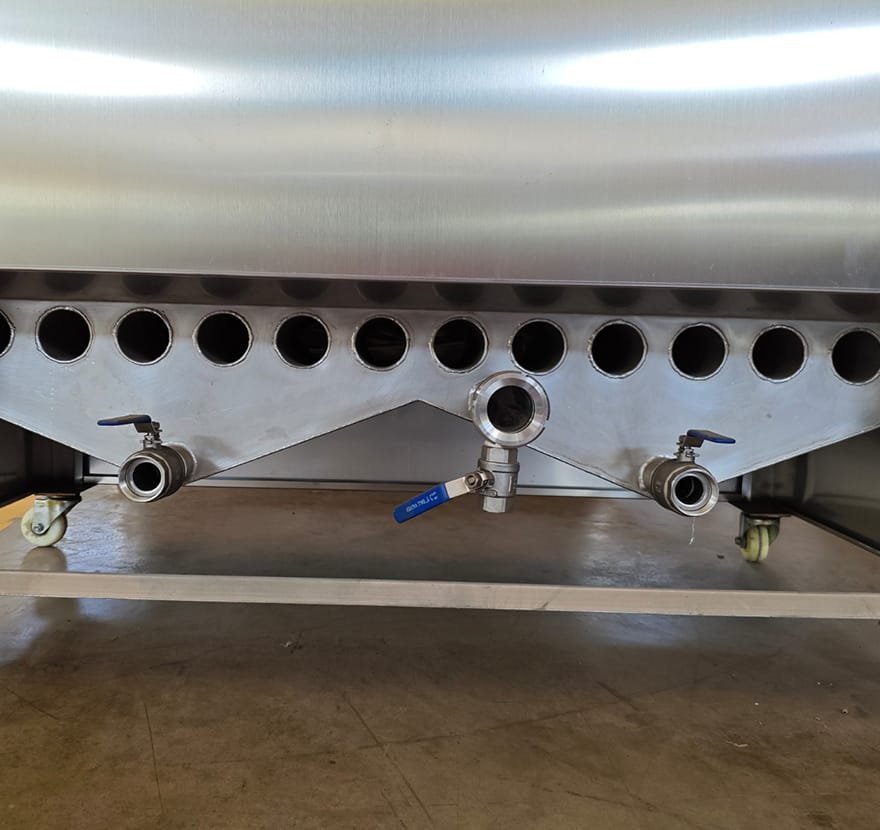

Optional oil filtration/drain system: remove fines, extend oil life, and reduce oil consumption.

Heating design is another key consideration. Compared with older structures that place the heat source beneath the kettle, submerged heating elements contact the oil directly and typically provide faster heat-up and recovery. When cold product is loaded, the oil temperature rebounds more quickly, helping keep the process inside a defined control window and reducing batch variation.

For certain special-use scenarios, some operators also consider an outdoor deep fryer (often gas-powered). Outdoor units can fit large-item or event cooking, but for most daily production in plants and commercial kitchens, automated square electric fryers are usually a better fit for indoor compliance, controllable environments, and stable process parameters.

Cleaning and maintenance: reduce downtime and protect equipment life

Cleaning and maintenance practices at the frying station often determine long-term stability and oil management performance. A standardized sanitation routine reduces off-odors and carbon buildup, supports consistent heat transfer, and can meaningfully extend equipment service life.

Waste oil handling and recovery

Do not pour waste oil into drains. Once cooled, oils and fats can solidify and lead to clogs and higher maintenance costs. For disposal, allow the oil to cool completely, then transfer it into a sealable, impact-resistant container and dispose of it according to local waste rules. In some regions, used cooking oil collection or recycling services are available—check local policies and service providers.

Hardware cleaning: pay attention to heating elements and sensor areas

Keeping the fryer clean supports safe and efficient operation. If your unit uses submerged heating elements, follow these key points:

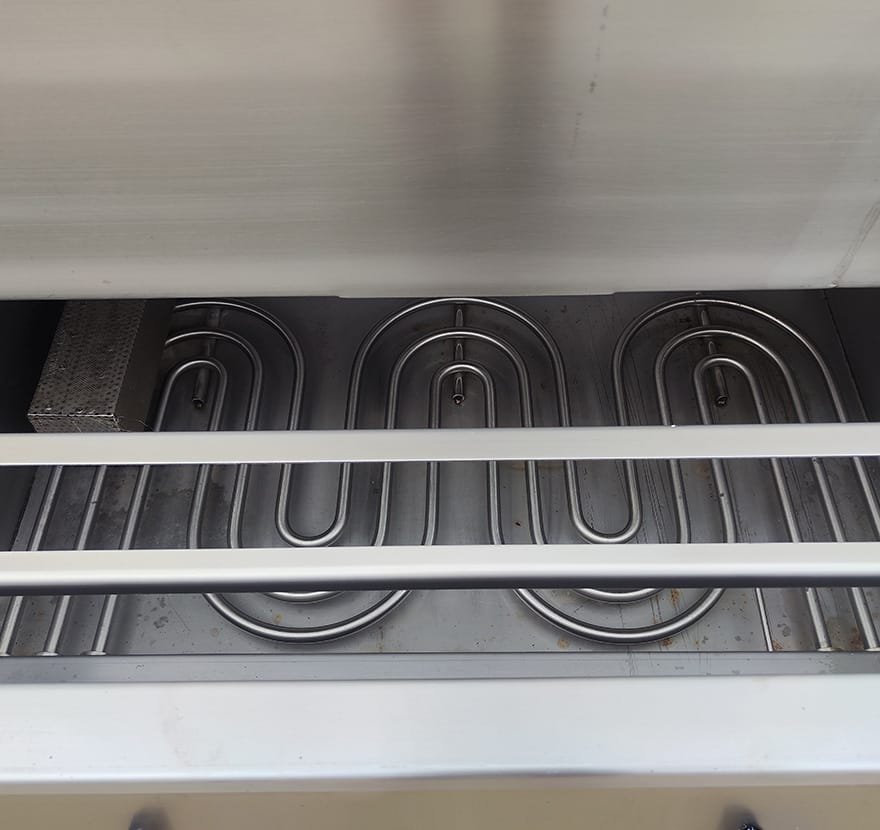

Cleaning focus areas: heating elements and sensor zones (detail view).

Power off and cool down: Disconnect power and allow the unit to cool to a safe touch temperature.

Drain oil completely: Empty the tank via the drain/filtration system or by manual draining, as applicable.

Clean gently: Use a soft brush or non-abrasive sponge with warm water and a neutral cleaner. Avoid steel wool or hard tools that can scratch metal surfaces and affect sensor stability.

Wipe and dry: Remove residue with a damp cloth, then dry thoroughly before reassembly and the next start-up.

Conclusion

For large-scale frying in food plants, central kitchens, and chain-restaurant back-of-house operations, Zhucheng Qiangda automatic square fryers with a tilting basket can deliver tangible gains in discharge rhythm, operator protection, controllable parameters, and batch consistency. When combined with appropriate high-smoke-point oils, a stable control window, and standardized cleaning and maintenance routines, they help achieve efficient, stable, and repeatable fried-product output.
