Spiral Freezers Improve Frozen Product Quality and Line Efficiency in Food Plants

[Product News] In response to food processors’ integrated needs for continuous production, stable product quality, and lower energy consumption, spiral freezers are becoming one of the key pieces of equipment in IQF and frozen-food lines.

Zhucheng Qiangda has introduced a spiral freezer solution built around three-dimensional spiral conveying and forced-convection heat transfer. By delivering a longer freezing path and controllable dwell time within a compact footprint, the system supports rapid, uniform freezing while reducing compression and impacts that can affect product appearance and integrity.

Three-dimensional spiral conveying increases space utilization

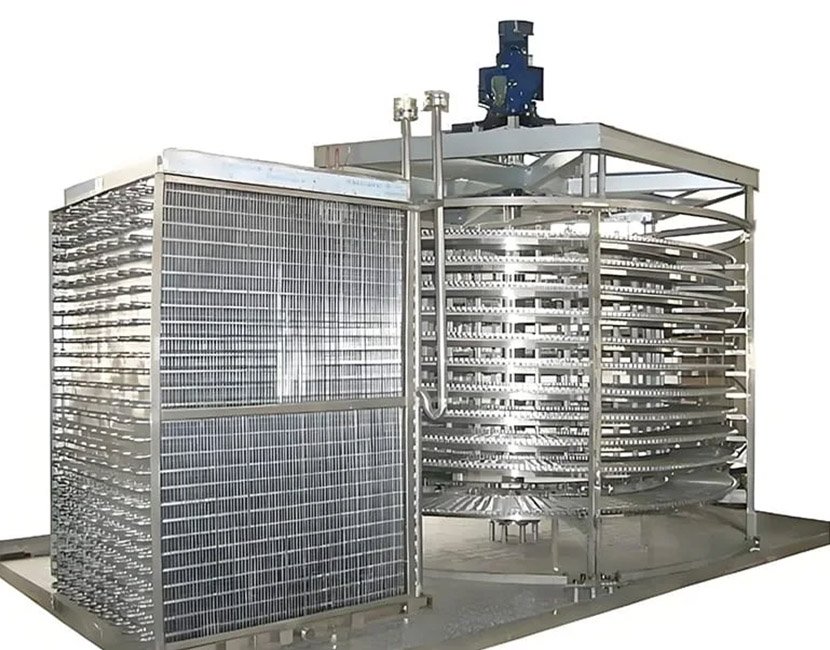

A spiral freezer arranges the conveyor along a spiral tower so products complete the freezing process while moving continuously upward or downward.

Compared with straight tunnel designs, the three-dimensional layout provides a longer freezing line and more stable dwell-time control under the same plant space constraints.

Combined with a variable-frequency drive, conveyor speed can be adjusted steplessly to match different product thicknesses, moisture levels, and target core temperatures. This makes the system suitable for capacity expansion projects, space-limited layouts, or plants that require frequent product changeovers.

Forced-convection heat transfer supports uniform freezing and stable quality

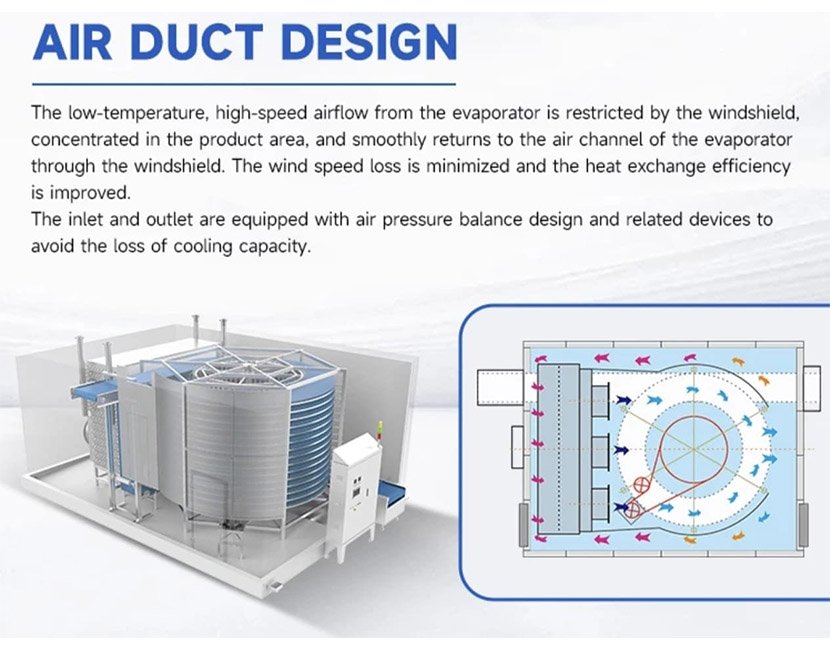

Inside the spiral tower, the system organizes high-efficiency airflow; cold air can be supplied from the top or side to form a vertical circulating air field that envelopes and penetrates product layers.

High-velocity, low-temperature forced convection accelerates heat removal, shortens freezing time, and reduces risks associated with non-uniform freezing (for example, “over-frozen surfaces with insufficient core freezing”).

For products that require Individual Quick Freezing (IQF) and for items with higher appearance requirements, continuous conveying and a stable airflow pattern also help reduce sticking and clumping.

Design focused on food hygiene and continuous operation

In food processing environments, materials and structure directly affect sanitation, maintenance, and compliance.

Zhucheng Qiangda’s spiral freezer conveying system typically supports SUS304 stainless-steel mesh belts or food-grade chain plates to balance corrosion resistance and cleanability.

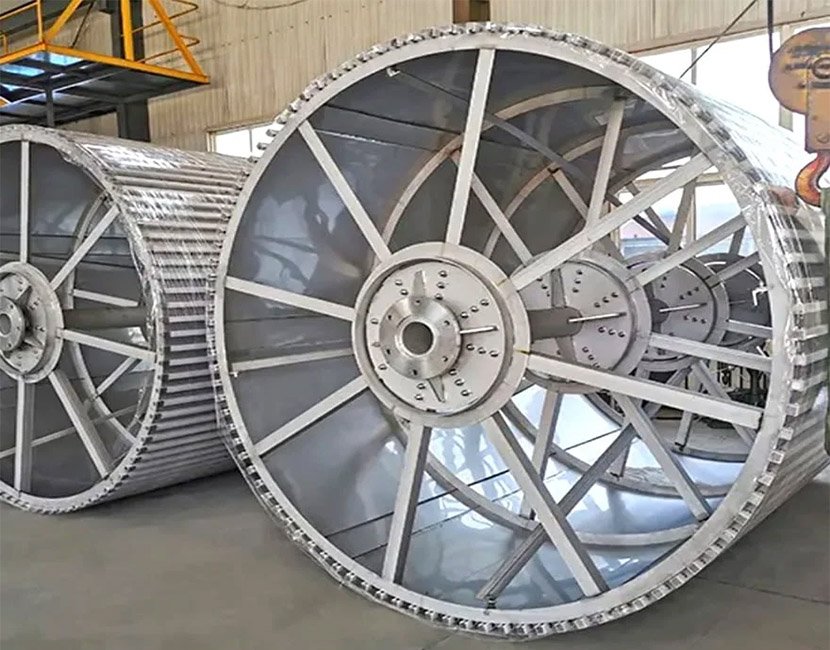

The tower and guidance structure use high-strength stainless-steel components to support long-term stable operation and reduce belt tracking deviation

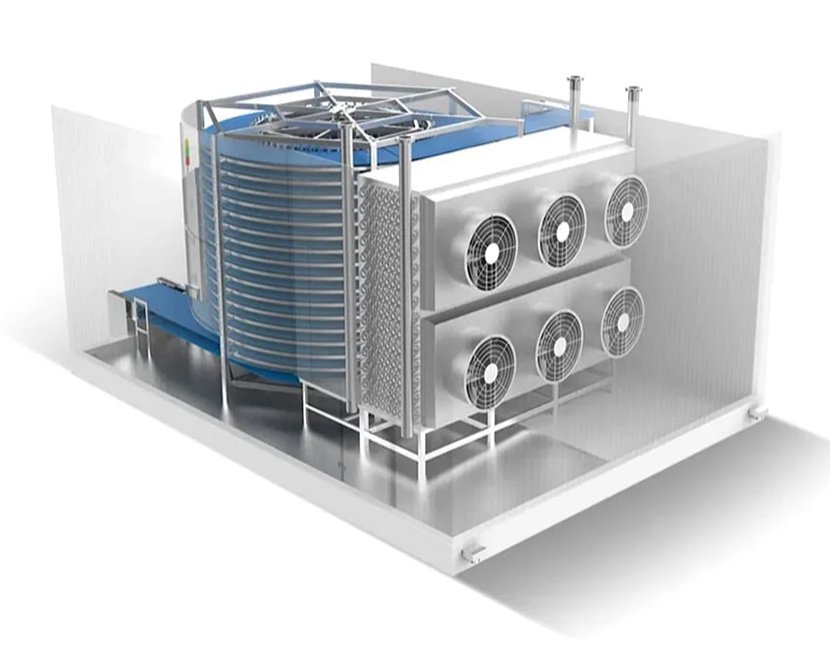

The insulated enclosure commonly uses polyurethane insulation panels to reduce cold loss.

The evaporator can use a variable fin-pitch design to slow frost buildup, extend effective run time, and reduce the impact of defrost cycles on line rhythm.

The control system can be expanded with PLC and a touchscreen for parameter setting, operation records, and fault prompts. This supports shift management and process traceability.

Broad applicability across frozen product categories

Spiral freezers are widely used for operating conditions that require continuous freezing, adjustable freezing time, or irregularly shaped products.

Typical applications include breaded and fried items (chicken pieces, fried shrimp, fish fillets), seafood (shrimp, shellfish, fish portions), meat and poultry cuts, prepared meals and soups, fruits and vegetables (strawberries, blueberries, asparagus, corn), and dough/pastry products (dumplings, spring rolls, glutinous rice balls, steamed buns, and other dim sum items).

Sizing and implementation considerations

For project implementation, it is recommended to confirm key parameters during the sizing stage, including target capacity, single-piece dimensions and loading method, inlet/outlet temperatures, target core temperature, required freezing time, hygiene grade, and available plant space.Based on these inputs, the spiral turns, belt specification, airflow organization, and refrigeration system configuration can be matched.

For plants planning multi-product production, it is also advisable to evaluate the VFD speed range, dwell-time adjustment capability, and defrost strategy to improve equipment utilization and production flexibility.
