Continuous Fryer

PRODUCT DESCRIPTION

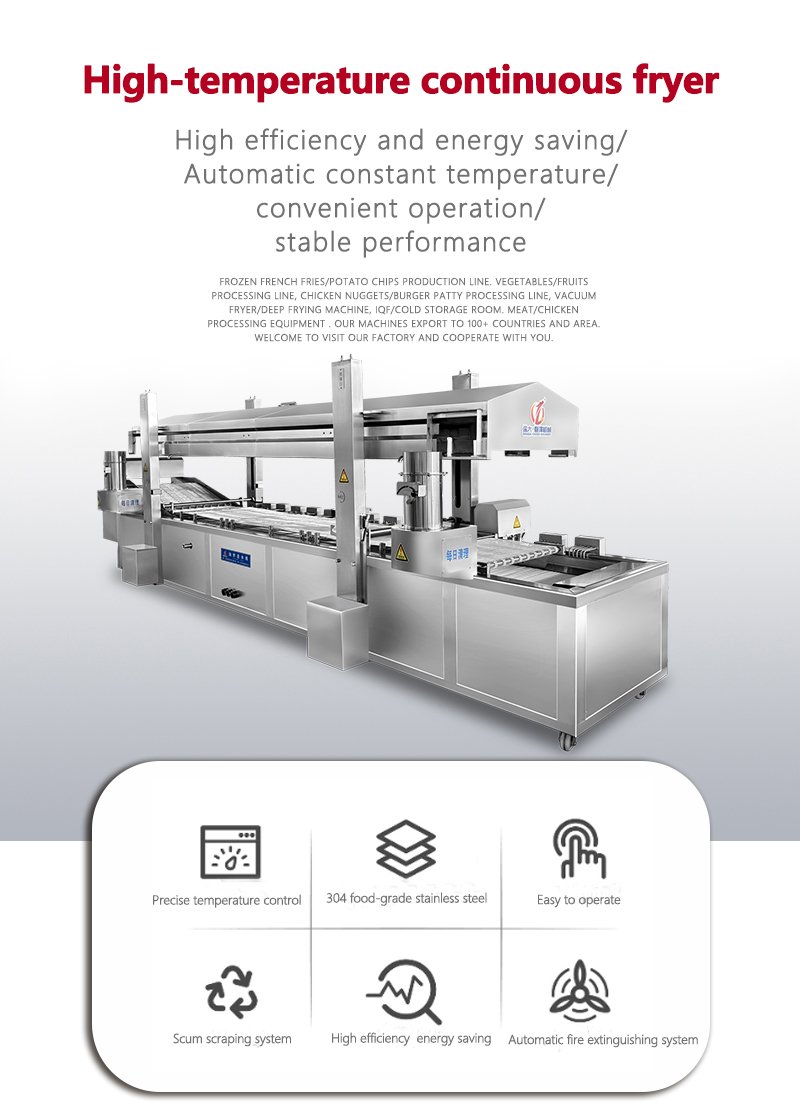

Continuous Fryer (also known as Tunnel Fryer or Conveyor Belt Fryer) A Continuous Fryer is an industrial-scale food processing machine designed for high-volume, consistent frying of various food products. Unlike batch fryers, it operates non-stop, with food items entering at one end and emerging cooked at the other end on a continuous conveyor belt. This design is fundamental for large-scale production lines in the snack, frozen food, and prepared meals industries.

Key characteristics include:

•High Efficiency & Automation: Enables uninterrupted production, significantly increasing output compared to batch fryers.

•Consistent Quality: The precise control over frying time and temperature ensures every product is cooked uniformly in terms of color, texture, and oil content.

•Labor-Saving: Requires minimal operator intervention, mainly for loading and monitoring.

•Improved Oil Life: Advanced filtration systems often integrated into the machine help remove food particles, extending the life of the frying oil.

Product Description


Specification

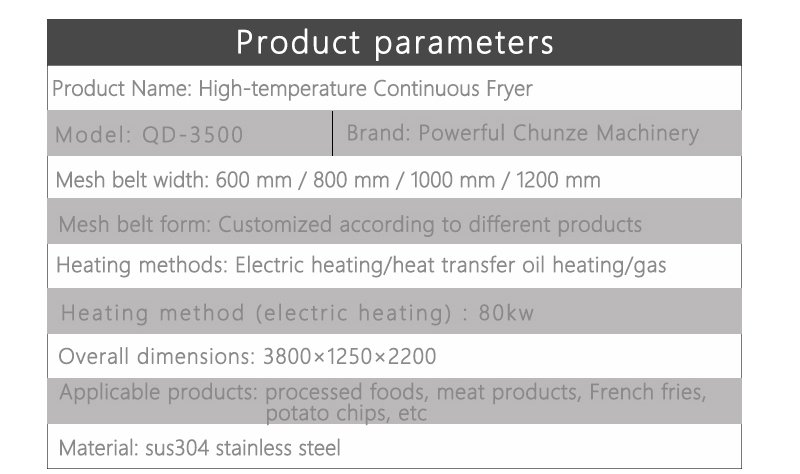

Technical Parameter

Specification / Description

Belt width

400mm

600mm

800mm

1000m

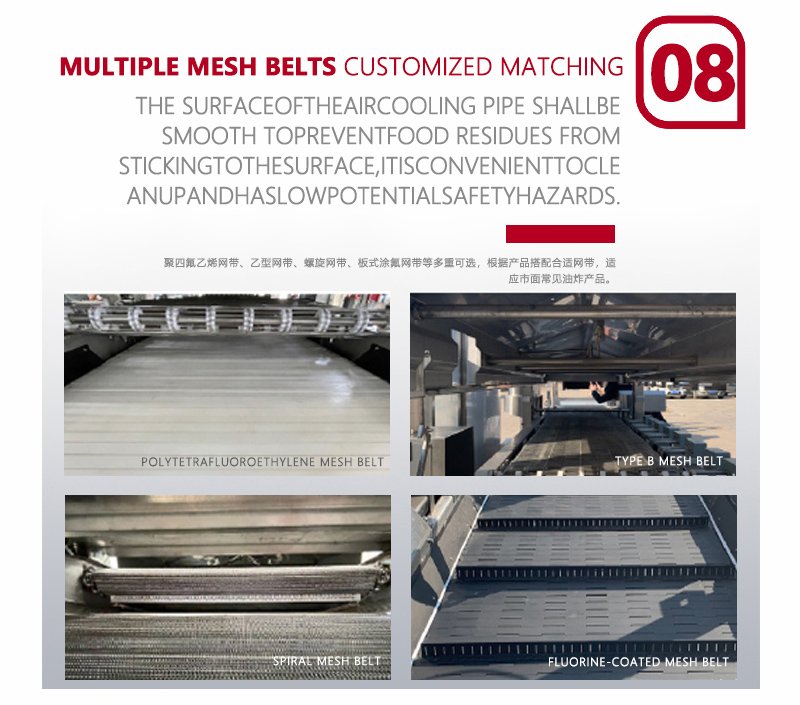

Conveyor Belt Type

Flat Top Chain Belt

Wire Mesh Belt

Machine body length

3500~10000mm

Oil Capacity

depends

Frying Temperature

50°C - 200°C (Adjustable)

Frying Time

30 sec - 10 min (Variable Speed)

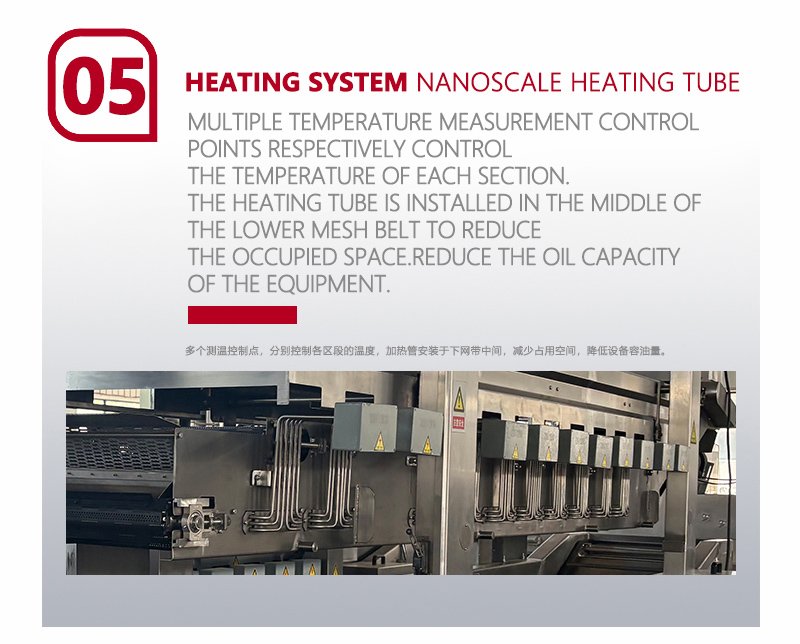

Heating Method

Electric, gas, or thermal oil

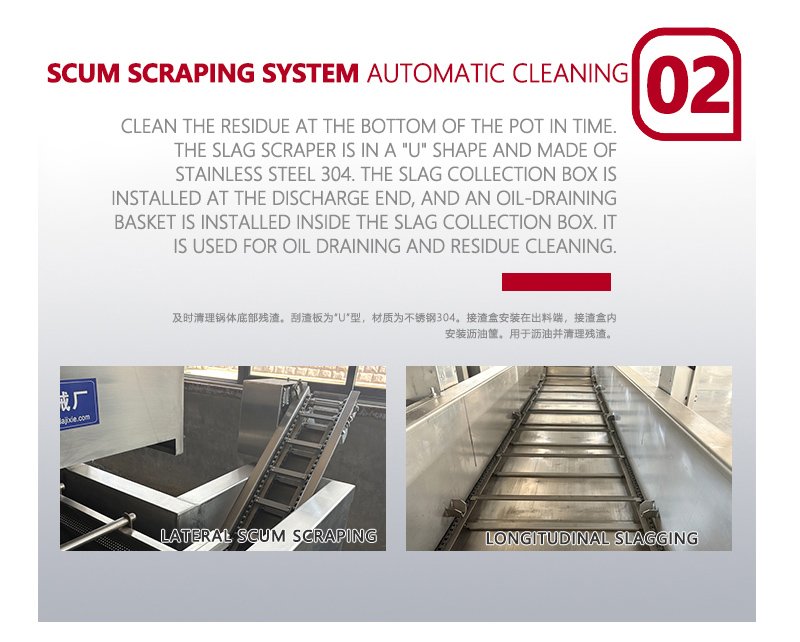

Crumb Removal System

Continuous Scraping with Perforated Belt

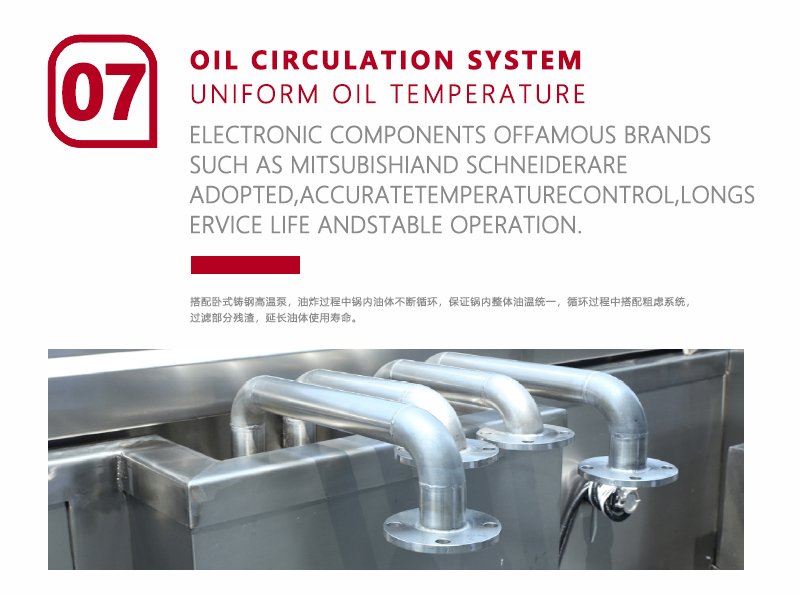

Oil Filtration System

Automatic Filter from the bottom, Continuous

Automatic Filter from the sides, Continuous

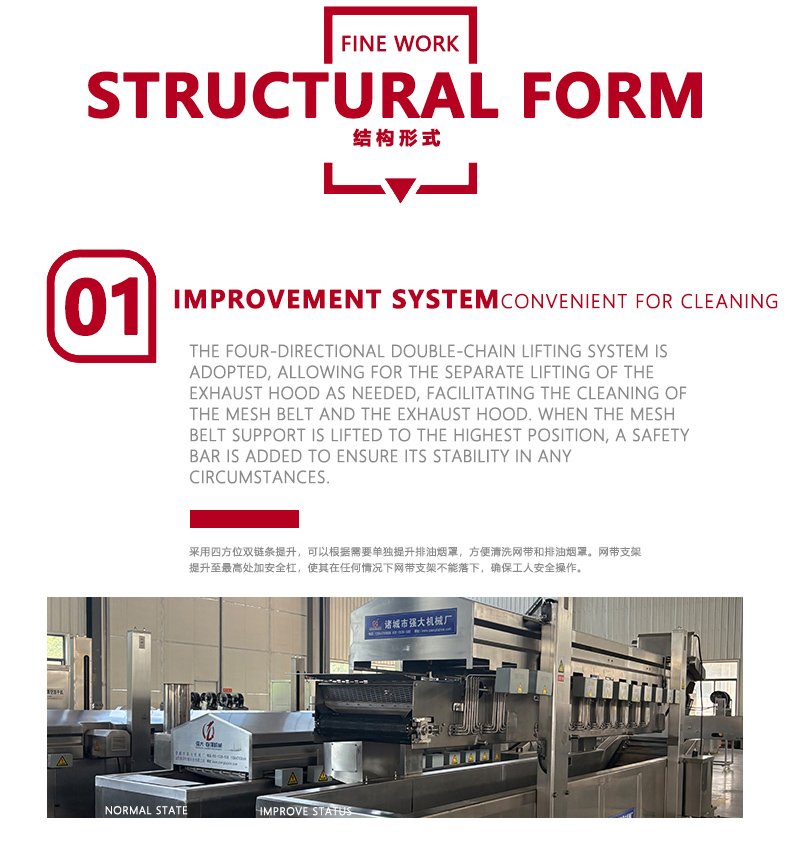

Lifting system

Hydraulic Lift

Chain lift

Material (Contact Parts)

SUS304

Power Supply

Customized

Power

Depends

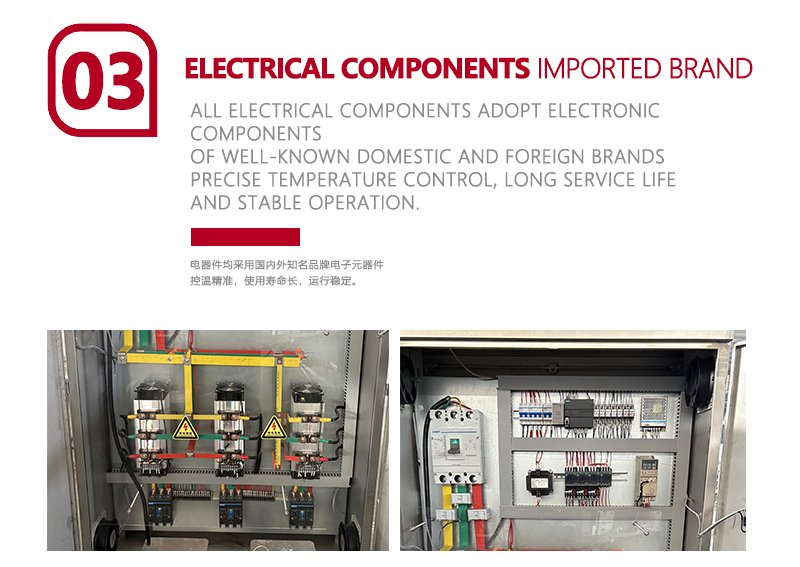

Safety Devices

Overcurrent Protection,Earth Leakage Protection,Phase Failure Protection,Overtemperature Alarm,Low Oil Level Protection,Emergency Stop Bumper

Extra devices

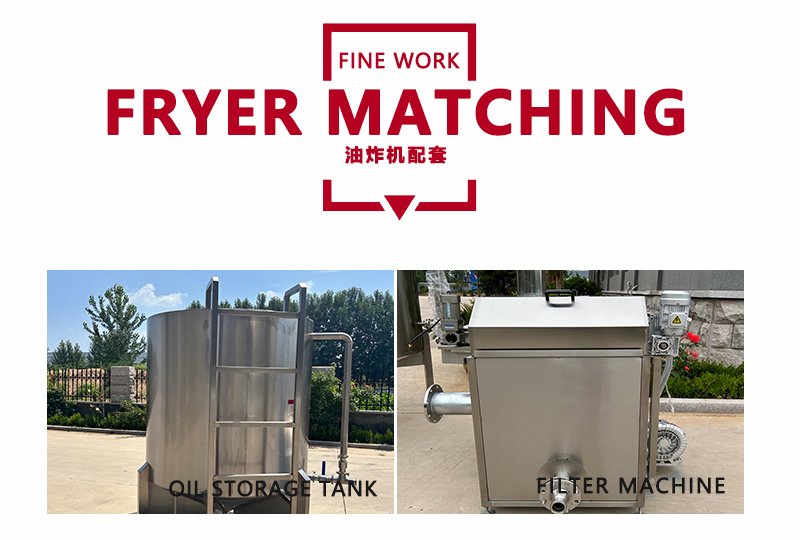

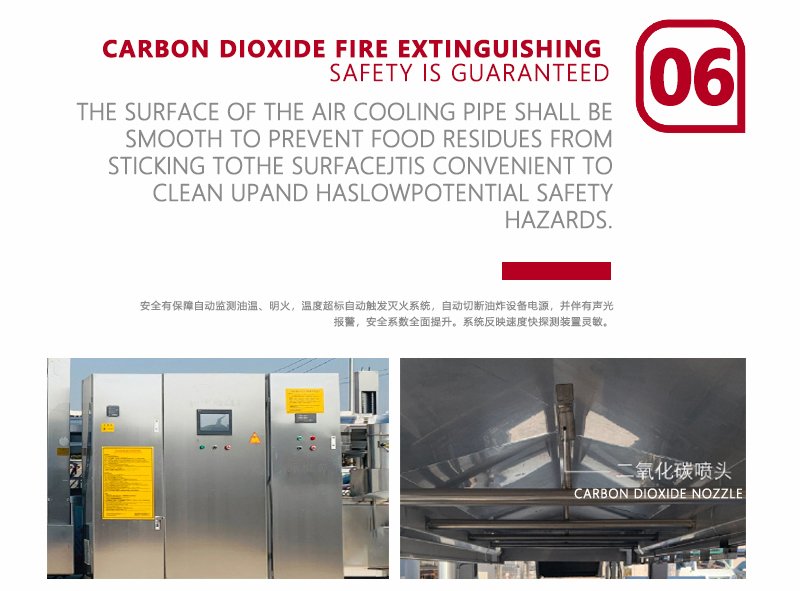

Oil tank,Oil Filter,Oil Topping System,Fire Extinguishing System
