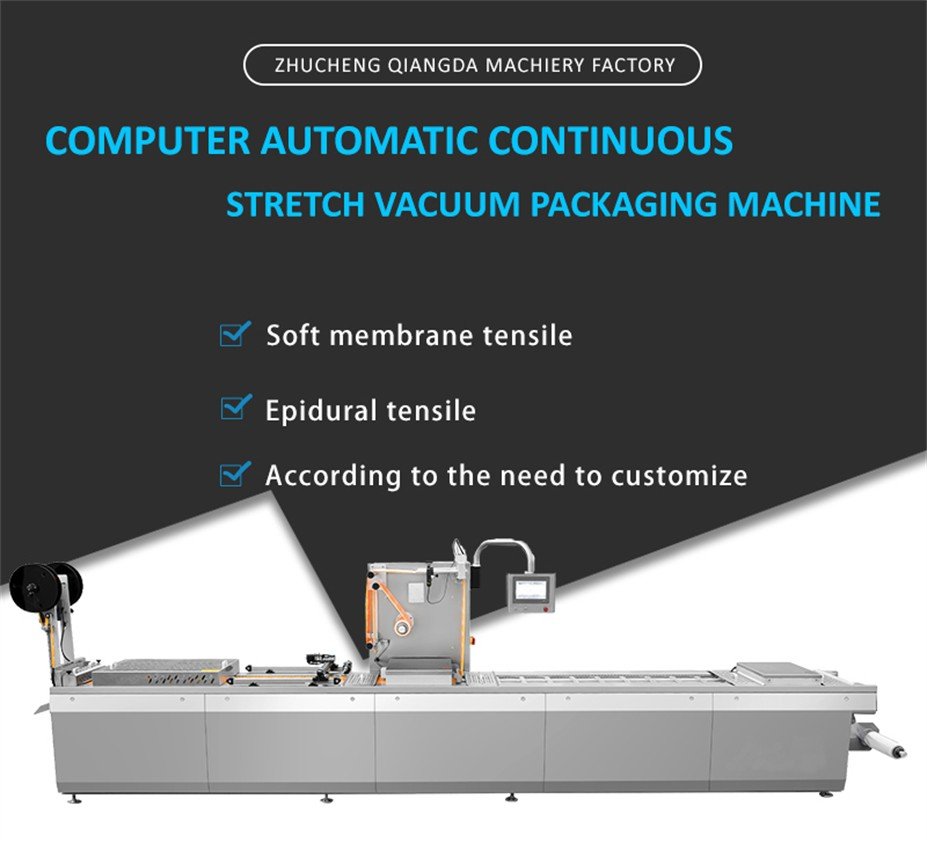

Computer Automatic Continuous Stretch Vacuum Thermoformer Packaging Machine

PRODUCT DESCRIPTION

Stretch film vacuum packaging machine is fully automatic continuous stretch vacuum packaging machine, film through heating equipment, after forming dies using blow down the working principle of the absorption The next step is to transport the finished product of packaging to the next process, and the remaining waste stretch film packaging machine is a custom in advance without enterprise bag packaging equipment, is stretch to form the shape of the container, workers in the material filled areas to put material, the effect of vacuum sealing membrane area, Packaging machinery cut into a single product by transverse or longitudinal cutting;film material will enter the waste recycling bucket. Because the stretch film packaging machine does not need to customize the bag in advance, but is covered by the bottom film and the upper film, it is also known as the laminating machine or four side sealing packaging machine by some users.

Product Description


Product Parameters

model

width of upper film

 width of  lower film



vacuum degree

compressed air



DLZ-420



396mm



422mm



≤200pa



≥0.6Mpa



DLZ-520



496mm



522mm



≤200pa



≥0.6Mpa


power supply

power

weight of machine

machine size



380V50HZ



15KW



1700kg



6800×1100×1900mm



380V50HZ



18KW



2100kg



7800×1200×1900mm

Can be customized according to customer requirements.
