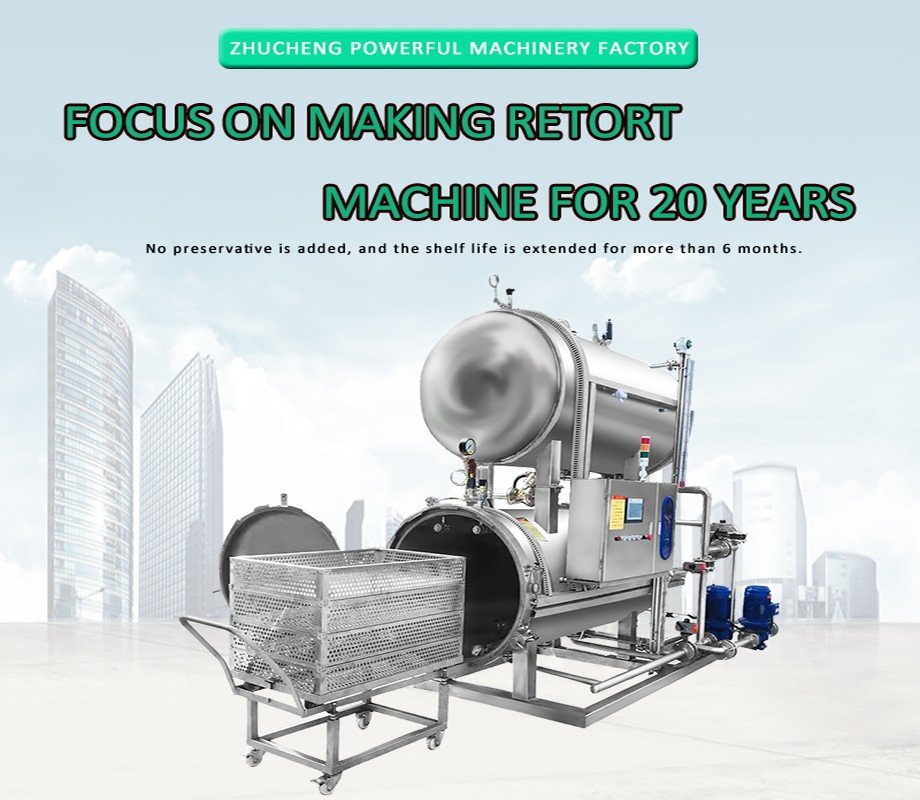

Fully Automatic Spray Type/water Bath Type Double-layer Sterilizer Pot

PRODUCT DESCRIPTION

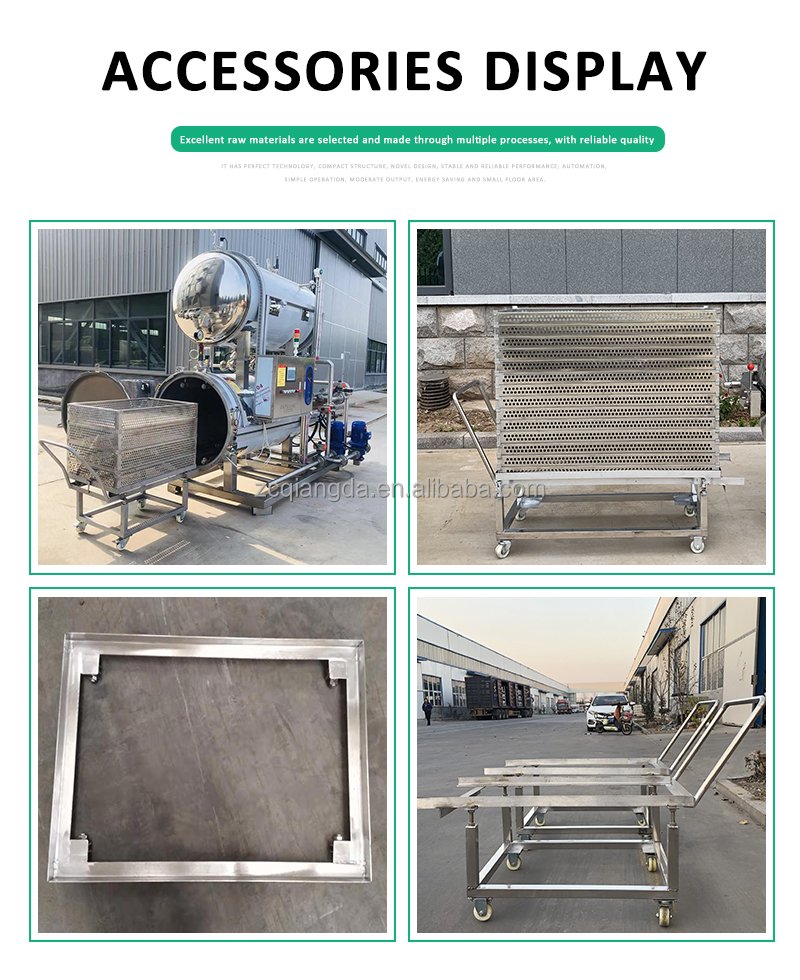

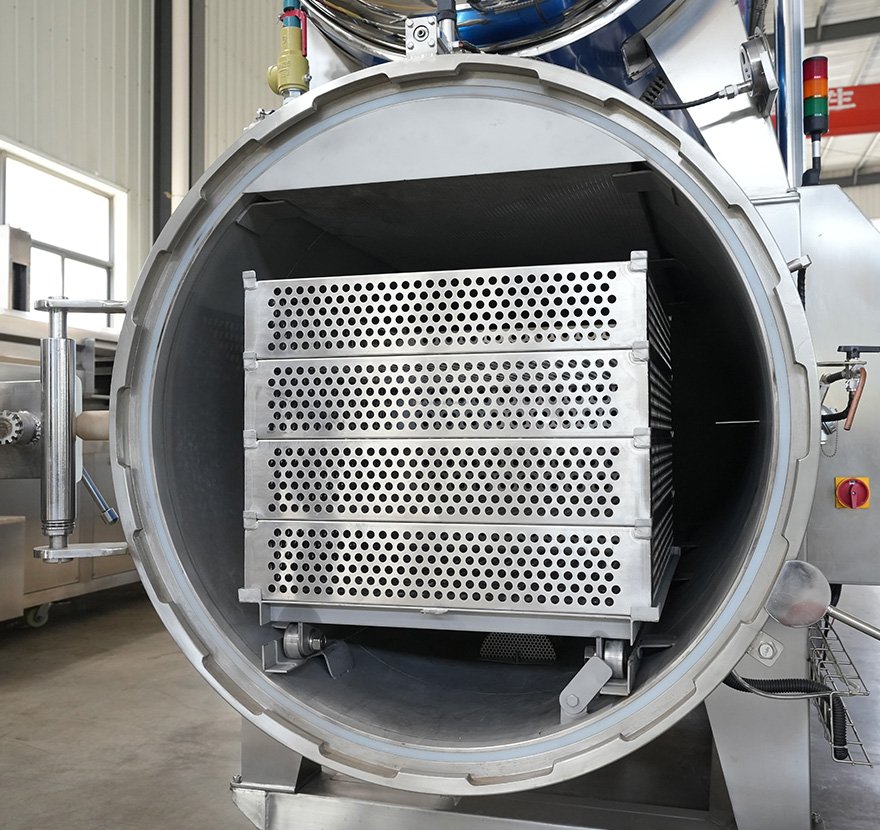

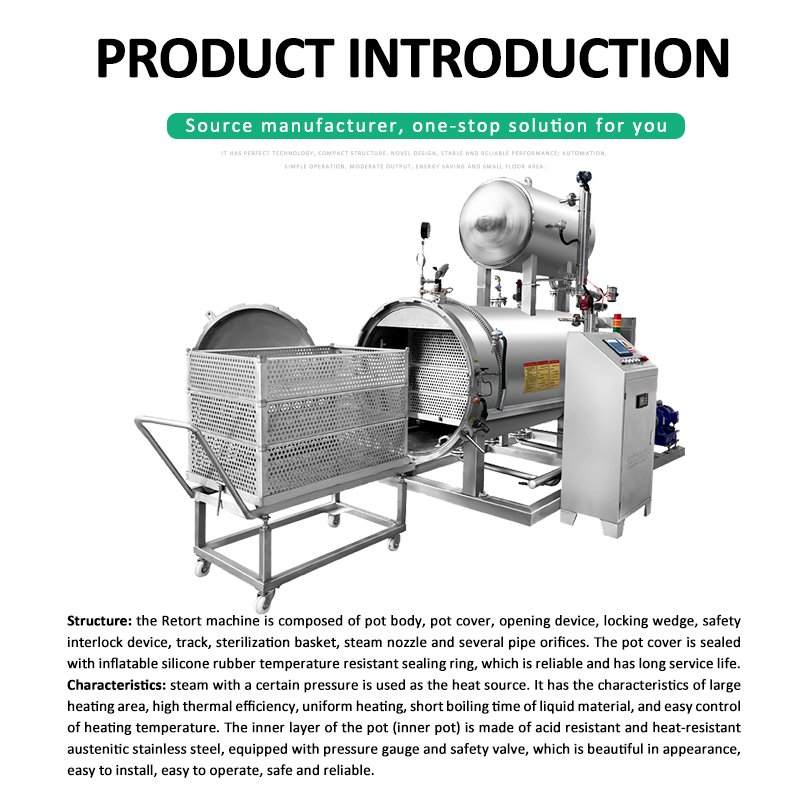

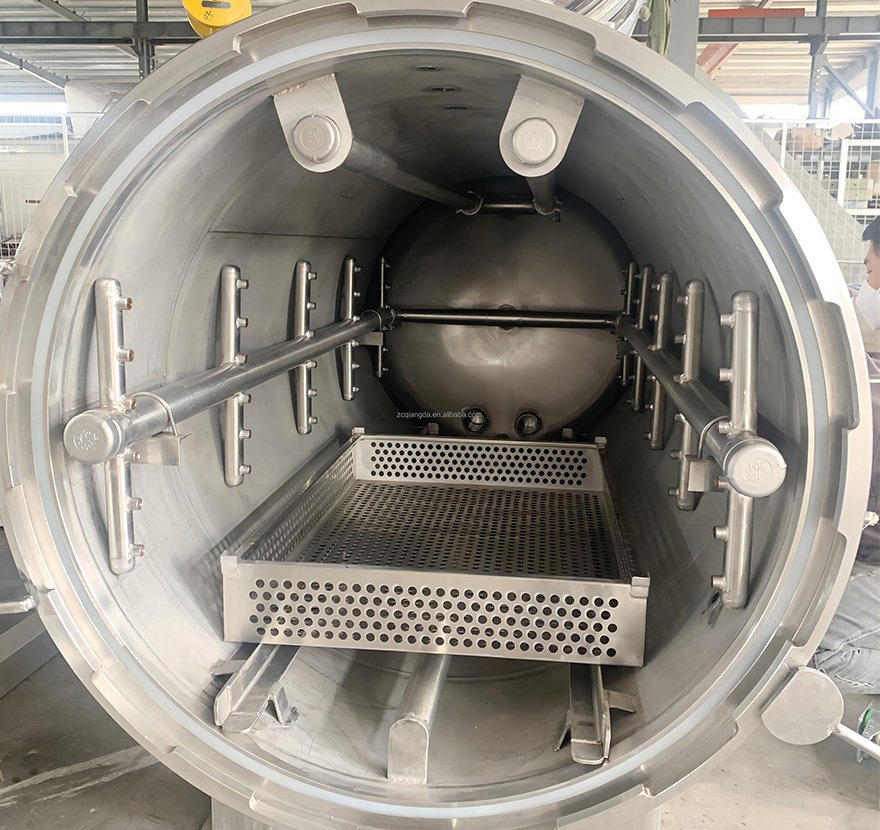

Structure: The sterilization retort consists of a retort body, door, opening mechanism, locking wedges, safety interlock device, guide rails, sterilization baskets, steam spray nozzles, and several auxiliary nozzles. The door is sealed with an inflatable silicone rubber high-temperature gasket, ensuring reliable sealing and an extended service life.

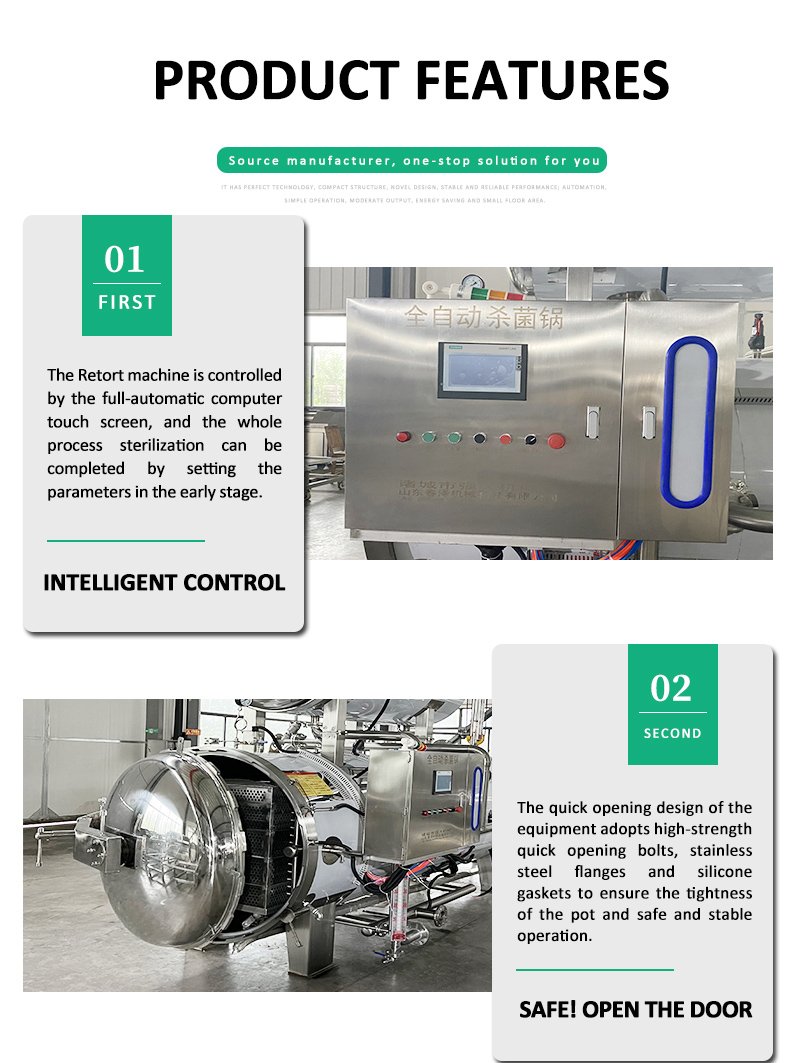

⚫ Features: The unit is equipped with pressure gauges and safety valves. It boasts an aesthetically pleasing design, simple installation, user-friendly operation, and high safety and reliability.

⚫ Applications: Widely used for high-temperature sterilization of various foods and packaged goods, including meat, egg products, fresh corn, peanuts, wild vegetables, bean products, aquatic products, canned goods, and pouches. Suitable for businesses of all sizes—large, medium, and small—effectively meeting diverse production needs.

Product Description


High Temperature Sterilizer

ModelTank Inner Diameter MMTank Length MMHeating methodHeating Power KWSterilization methodVolume m³Material basket volume m³Material basket size mmMaterial cartOutput (kg)Weight (kg)Dimensions (mm)Air compressor (m³)Water tank (m³)
QD400400800Electric heating/ Steam heating13.5Spray/Water bath/Steam0.10.0627800*280*280*11201501650*850*14000.371
QD500500800Electric heating/ Steam heating27Spray/Water bath/Steam0.150.072800*300*150*21402001800*1000*17000.371
QD6006001000Electric heating/ Steam heating27Spray/Water bath/Steam0.360.15961000*400*133*311003201900*1100*19000.51
QD7007001200Electric heating/ Steam heating27Spray/Water bath/Steam0.550.2431200*450*150*311506502300*1200*21500.51
QD8008001500Electric heating/ Steam heating50Spray/Water bath/Steam0.750.375750*500*125*822507502300*1400*24000.92
QD9009001800Electric heating/ Steam heating60Spray/Water bath/Steam1.140.648900*600*150*823001.3T3400*1400*26000.92
QD100010002400Electric heating/ Steam heating100Spray/Water bath/Steam1.90.92951100*650*130*1025001.7T4000*1600*30000.94
QD122712002700Steam heatingSteamSpray/Water bath/Steam3.051.728900*800*160*1538002.2T4500*1500*330018
QD123612003600Steam heatingSteamSpray/Water bath/Steam4.072.304900*800*160*20413002.8T5500*1900*4000110
