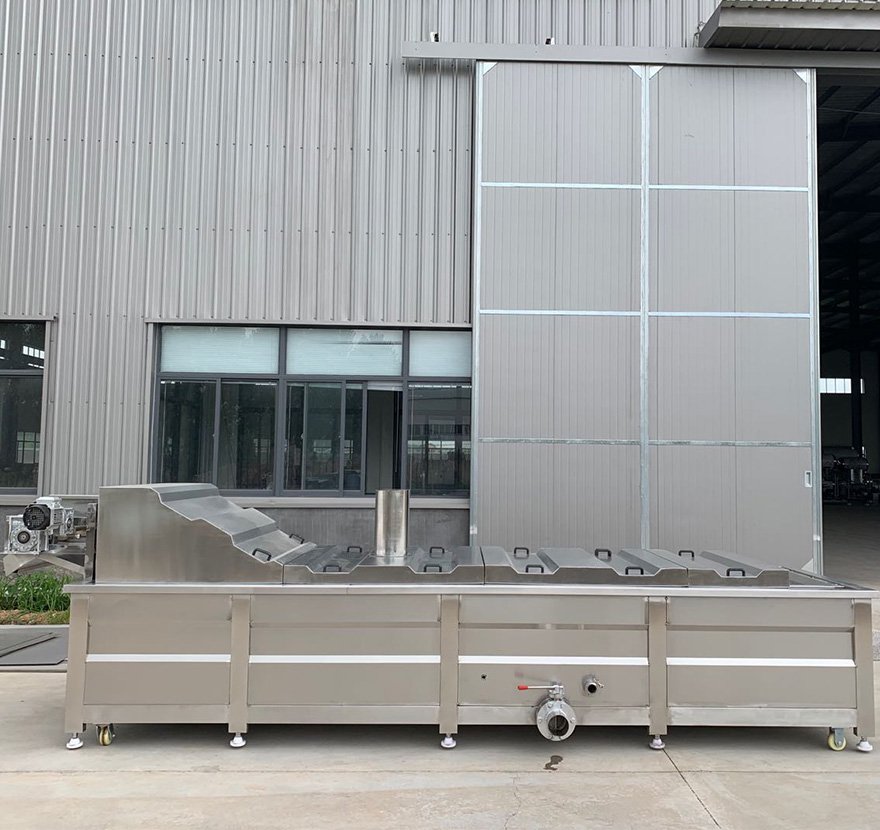

Water Bath Pasteurizer
The pasteurization machine is composed of an insulation layer, a box body, a transmission mechanism, steam pipes (or electric heating tubes) and their accessories, a water temperature detection device, etc. The packaged materials enter the pasteurization machine for steaming and sterilization. The conveying speed and temperature can be adjusted as required.
Product Description

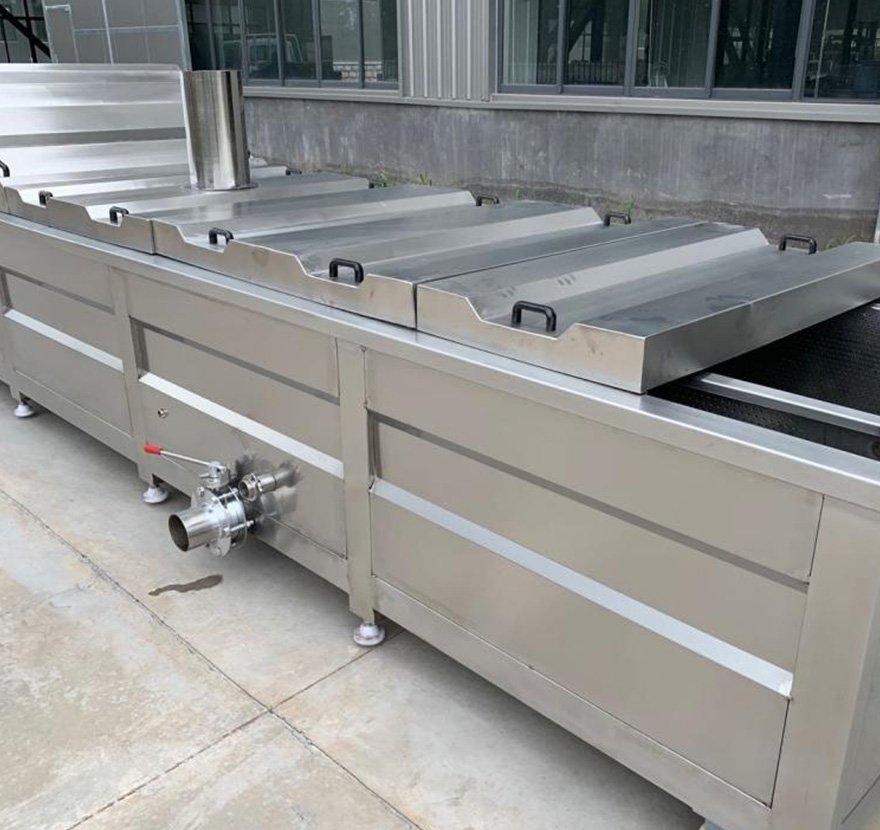

The entire device is constructed from SUS304 food-grade stainless steel, ensuring cleanliness, hygiene, and corrosion resistance. You can see that the welds are even, smooth, and seamless, effectively preventing impurities and facilitating cleaning. This ensures the device's structural strength and durability in long-term high-temperature and high-humidity environments.

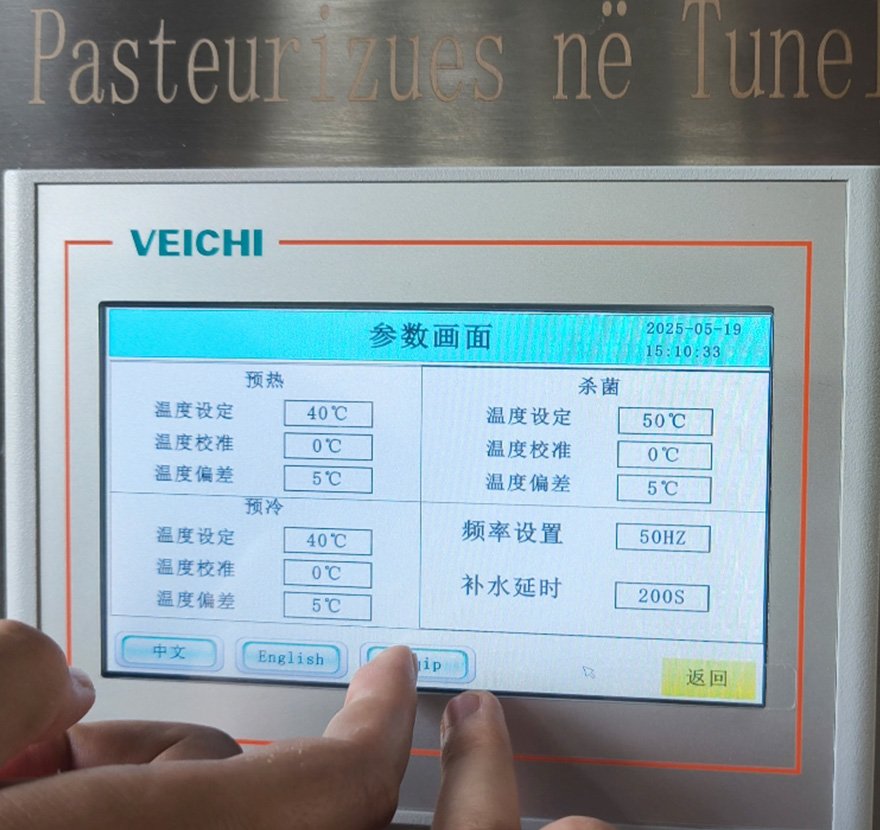

The core intelligent temperature control system, combined with a high-precision PT sensor, keeps water temperature fluctuations within ±0.5°C, ensuring a precise and stable sterilization process. The simple touchscreen/human-machine interface makes temperature, time, speed, and other parameter settings clear and easy to operate, significantly reducing the learning curve.
| Model | QD3500 | QD3500 | QD6000 | QD8000 |
| Size(mm) | 3500*900*1400 | 3500*1100*1500 | 6000*1100*1550 | 8000*1200*1550 |
| Width of conveyor | 650(mm) | 800(mm) | 800(mm) | 900(mm) |
| Voltage | 220V/380V | 380V/50HZ | 380V/50HZ | 380V/50HZ |
| Output(kg/h) | 50kg/h | 100kg/h | 500-1200kg/h | 1500kg/h |
| Running speed | 1-15m/min frequency control | |||
| Pasteurizing temperature | 65-98℃,adjustable | |||
