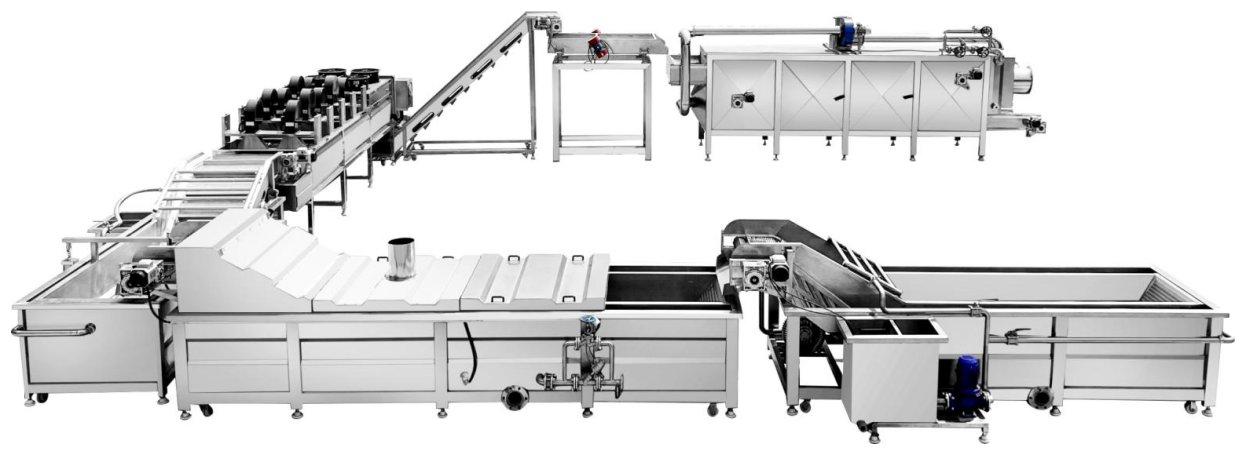

Continuous Drying Line

Part 2 /Equipment Parameter

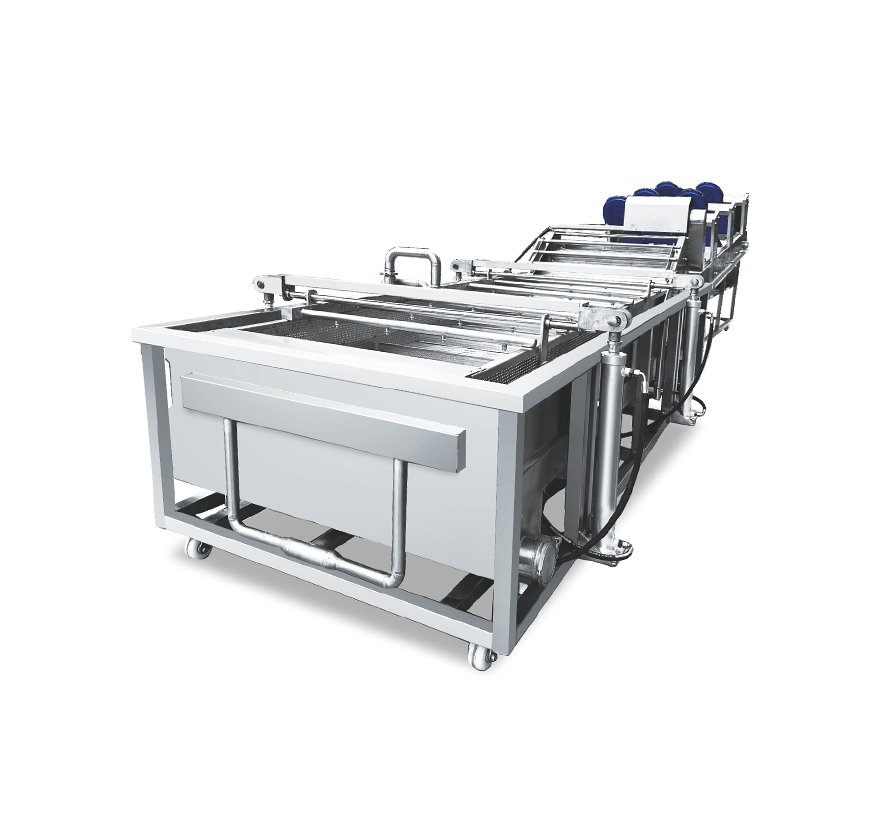

01 Bubble Washing Machine

The bubble washing machine is mainly used for cleaning vegetables, aquatic products, fruits, and dry goods.

It can be used for cleaning red apricots, carrots, apples, potatoes, corn, etc. It is more suitable for fruits and vegetables grown in the soil. It has a high degree of cleaning and can maintain its original color.

Technical Parameters

Model: QXJ-6000

Dimensions: 6000*1450*1350mm

Belt width: 800mm

Belt type: Stainless steel leaf chain

Cleaning method: Bubble and Spray Cleaning

Drive motor: 1.5 kW

Vortex air pump: 2.2 kW

Water pump: 2.2 kW

Material: SUS304 Stainless Steel

Vessel thickness: 2mm

Cleaning area: The entire cleaning area can be raised

Qty:1 set

02 Blanching Machine

Blanching machines are primarily used for processing vegetables, fruits, petals, meat products, and seafood. They provide color-preserving precooking. The water inside the blanching machine is hot water, heated electrically or by steam. The machine offers uniform temperature and a high degree of automation, making it an essential piece of equipment for food processing.

Model: PTJ-7000

Belt Width: 800mm

Belt type: Stainless steel leaf chain

Blanching Time: 1-3 minutes (Adjustable)

Blanching Temperature: Adjustable

Power: 0.75kW

Dimensions: 7000*1250*1200mm

Voltage: 380V

Thickness: 2mm

Material: SUS304 stainless steel

Qty:1 set

03 Cooling Machine

Cooling machine is a device that lowers the temperature of an object through the principle of heat exchange and is widely used in industry, agriculture, refrigeration and other fields.

Technical Parameters

Model: QXJ-6000

Dimensions: 6000*1450*1350mm

Belt width: 800mm

Belt type: Stainless steel leaf chain

Cleaning method: Bubble and Spray Cleaning

Drive motor: 1.5 kW

Vortex air pump: 2.2 kW

Water pump: 2.2 kW

Material: SUS304 Stainless Steel

Vessel thickness: 2mm

Cleaning area: The entire cleaning area can be raised

Qty:1 set

04 Air Drying Machine

Through high pressure wind blowing for pre-cooling and removing the excess oil in short time.

Specification:

Size:5000*1063*2522

Power:3.3 Kw

Voltage: 380V 50Hz 3phase

Material: 304 stainless steel

Belt width:800mm

Qty:1 set

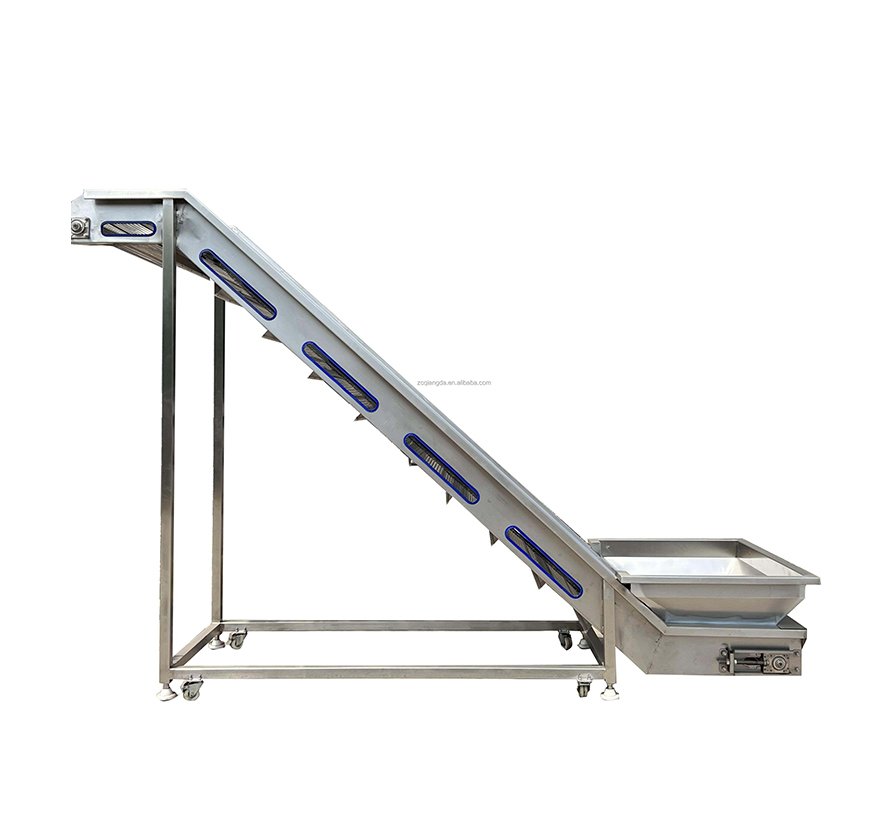

05 Elevator

This type of lifting equipment has the advantages of large conveying capacity, high lifting height, stable and reliable operation, and long service life. Good operational reliability, advanced design principles and processing methods ensure the reliability of the entire machine operation.

Model: TSJ-2500

Belt Width: 800mm

Belt type: Stainless steel leaf chain

Power:0.55kw

Material: SUS304 stainless steel

Dimensions: 2500*850*1300mm

Qty:1 set

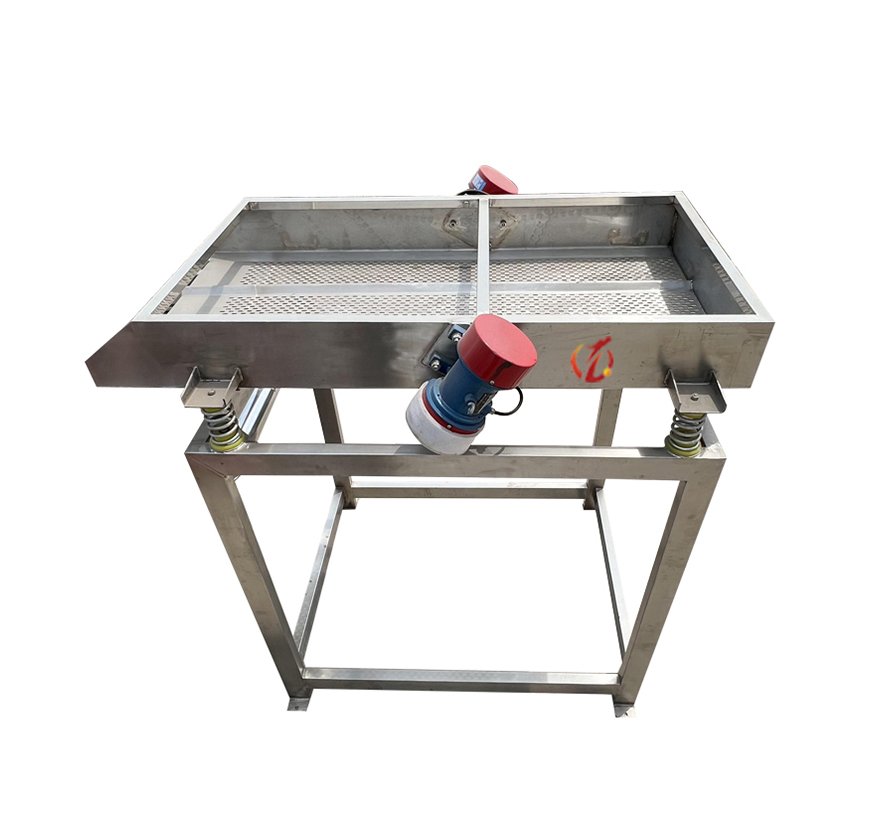

06 Vibrating Screen

The washed fruits are vibrated to remove surface moisture, making them easier to air-dry and also serving as a flat surface. Made of food-grade stainless steel, the SZF Series linear vibrating screen uses a vibrating motor to vibrate the product, removing surface moisture while simultaneously moving the product forward in a straight line. The SZF Series linear vibrating screen utilizes an electric vibrator as a vibration source, causing the material to be thrown up on the screen while simultaneously moving forward in a straight line, achieving water removal with a properly matched screen.

Model: ZDS-2000

Dimensions: 2000*800*1250mm

Screen Width: 800mm

Punch Size: 5mm

Power: 1.1kW

Voltage: 380V/50Hz (customized)

Support Legs: 60*60*2.5mm

Material: SUS304 stainless steel

Qty:1 set

07 Continuous Dryer

The multi-layer dryer optimizes drying efficiency by adjusting air volume, heating temperature, material residence time, and feeding rate. A special air distribution device ensures even distribution of hot air, ensuring product quality. Most of the air is recycled, resulting in significant energy savings.Used for drying, dehydrating, baking, tempering, preheating, shaping, and curing in various industries. Food: preserved fruits, vegetables, fruits, meat, seafood, aquatic products, grains, nuts, pasta, starch, oats, silkworm pupae, candy, goji berries, bird's nests, and agricultural and sideline product processing; Medicinal material processing (tangerine peel, ginseng, forsythia, honeysuckle, astragalus, Cistanche deserticola, etc.); Tea (chrysanthemum, rose, codonopsis pilosula, lily).

Features: It adopts steam heating and is equipped with a steam heater. The heat is transported to the dryer through the fan to evaporate the water. A dehumidification fan is installed above the machine to discharge the evaporated water. The material is transported through the five-layer mesh belt to achieve the purpose of drying.

Main Technical Parameters:

Dimensions: 10000*4300*3500mm

Belt Width: 2000mm

Power Supply: 380V/50Hz

Drying Time: Adjustable

Drying Temperature: Adjustable from 40°C to 100°C

Speed: Frequency Converter

Dehumidification fans: 1 set

Circulation fans: 4 sets

Steam heat exchangers: 4 sets

Qty:1 set

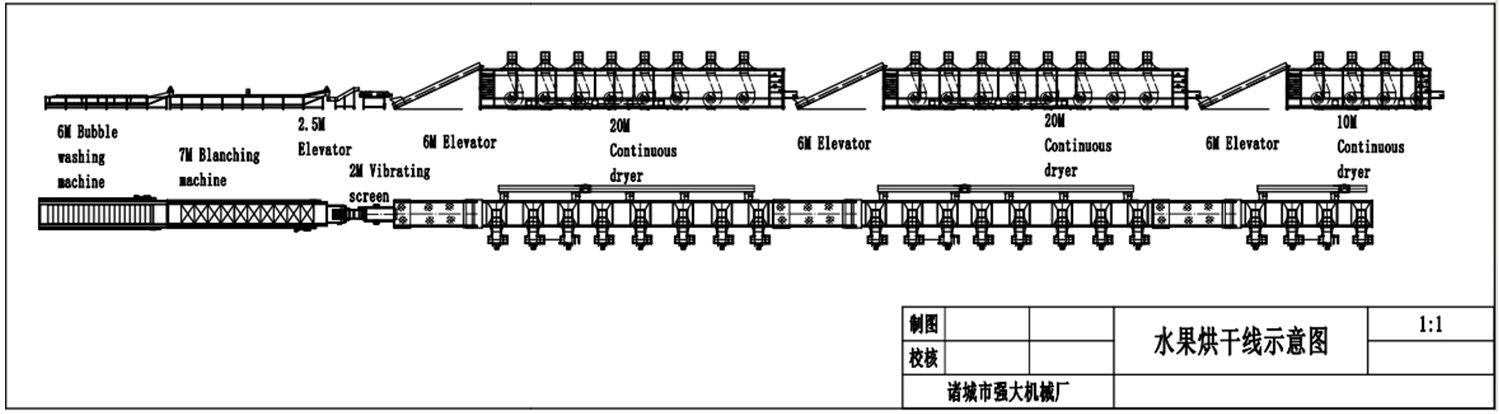

Parameter List:
